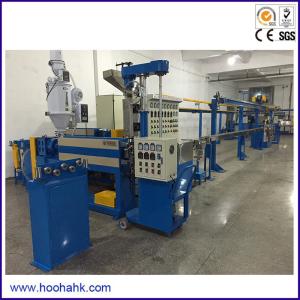

    Buy cheap 100 MM Single Screw Wire Extrusion Machine With NSK Bearing / Siemens Motor from wholesalers

    Buy cheap 100 MM Single Screw Wire Extrusion Machine With NSK Bearing / Siemens Motor from wholesalers
    • Buy cheap 100 MM Single Screw Wire Extrusion Machine With NSK Bearing / Siemens Motor from wholesalers
    • Buy cheap 100 MM Single Screw Wire Extrusion Machine With NSK Bearing / Siemens Motor from wholesalers
    • Buy cheap 100 MM Single Screw Wire Extrusion Machine With NSK Bearing / Siemens Motor from wholesalers
    • Buy cheap 100 MM Single Screw Wire Extrusion Machine With NSK Bearing / Siemens Motor from wholesalers
    • Buy cheap 100 MM Single Screw Wire Extrusion Machine With NSK Bearing / Siemens Motor from wholesalers
    • Buy cheap 100 MM Single Screw Wire Extrusion Machine With NSK Bearing / Siemens Motor from wholesalers

    100 MM Single Screw Wire Extrusion Machine With NSK Bearing / Siemens Motor

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : 100
    Certification : CCC ISO CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 10sets/month
    Delivery Time : 40 Working Days
    • Product Details
    • Company Profile

    100 MM Single Screw Wire Extrusion Machine With NSK Bearing / Siemens Motor

    100 mm Single Screw Wire Extrusion Machine with Japan-NSK Bearing


    Application:


    It's used for the copper wire insulation coating, then the wire get cooling through water to finished products. The product can be power cable, automotive wire, communication cable, magnetic wire, LAN cable and so on.

    Consisting Components:


    Consisting Components:Model:100
    Pay off stand2Pay off bobbin size:800-1600 mm
    Dancer1Screw size:100mm
    Main extruder1L/D:26:1
    loader & dryer1Output capacity:450 kg/hr
    Crosshead1Temperature control:11 zones
    Moving trough1Max. accumulating length:200 m
    Main cooling trough1Finished cable diameter:5.0---60.0 mm
    Water wiper1Max. line speed:450 m/min
    Diameter controller1Take up bobbin size:800-1600 mm
    printer1
    Accumulator1
    Capstan1
    Spark tester1
    Meter counter1
    Take up2
    Control box1

    Main Parts Brand:


    1. Motor: Germany-Siemens
    2. Inverter: Germany-Siemens or YASKAWA Japan
    3. Electric equipment: Siemens and Omron
    4. Bearing: NSK from Japan
    5. Belt: Mitsubishi


    Technical Parameter:


    Technical Parameter


    Type100mm
    Power380V 50Hz three phrase or customer's requirement
    Main Motor Power

    30KW


    Finish Wire Diameter


    5.0-60 mm


    Temperature Control


    11 Zones
    Max Line Speed90m/min
    Rotation Speed120 rpm/min

    Extrusion Capacity


    270kg/hr

    Bobbin Dia


    800-1600mm

    Main Parts Function:


    1. Inverter: The speed can be changed from zero to max
    2. Pay-off tension: Control automatically by electricity
    3. Take-up machine uses Polish rod, transverse and distance can be adjusted by plain shaft.
    4. Machine center height: 1 meter
    5. Diameter of screw: 100mm, L/D of screw: 26/1. Material: 38 CrMoAiA


    6. The surface of screw is carburized and quenched, electroplated with hard cr.
    7. Inside diameter of screw tube: 100mm. Material: 38 CrMoAiA,
    8. The surface is carburized and quenched.
    9. The material of insulation are PVC, XLPE, LSHF, PE, PP, TPEE, NYLON
    10. Production direction: Pay-off on the left. Take-up on the right. Customer's requirement


    11. Color of production line is light blue(automobile finish ), safe cover is yellow OR customer's requirement
    12. PROMOT SWITCH counter, set length freely.
    13. Automatically stop: When the counter has reached to your desired length, the Take up will stop automatically, if wire breaks abnormal and self-actuating brake.


    HOOHA TEAM FOR YOU


    HOOHA GROUP provide the series solution for the layout design of cable plant, machine matching, shipping and installation. It means you only spend less money on machine. You can enjoy such services and get more money.


    1.We are the cable equipment manufacturer.

    2.Professional engineer,long-term to research and development for to cable equipment .

    3.High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .

    4.Our machine use the international qualified brand,like siemens ,omron,nsk,lg etc.

    5.Technical support and spare parts service.

    6.Well-experienced in overseas to support customer with technical,training,operating.

    7.Responsible and Good communication and customer service skills,and save time and human cost for customers.

    8.Complete Foreign Trade Team.

    9.Working efficiently,quickly response to customer needs.


    After Service:


    1).Delivery Dates: 45 days
    2).Payment: TT or L/C
    3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
    4).Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
    5) After service phone number online
