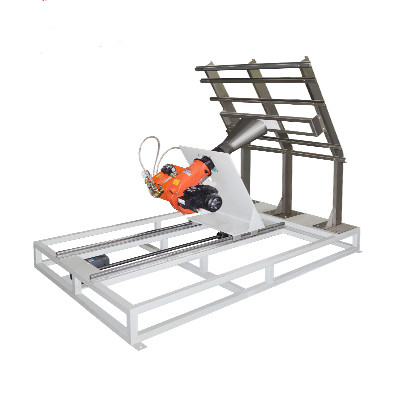

    Insulation Flammability Testing Equipment With 89 MM Cylindrical Fan

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : ZY6288
    Certification : GB/T25352-2010,CCAR-25-R4
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10 sets/month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Insulation Flammability Testing Equipment With 89 MM Cylindrical Fan


    The ZY6288 Insulation Insulation Material Is Resistant To Burning And Testing Machine


    Scope of application:


    It is applicable to evaluate the characteristics of heat-proof insulation material under high intensity open flame.


    Meet the standard:


    Conformity with GB/T25352-2010 test standard of heat insulation proof material resistance to burn test;

    Conformity with America's federal aviation regulations FAR25 In the appendix the first Ⅶ part "test method for insulation materials resistant to burn through test standards;

    Comply with the civil aviation administration of China transport aircraft airworthiness standards CCAR - 25 - R4, part Ⅵ measuring insulation material to burn and flame spread characteristics of the test method.


    Main parameters:


    1. The nozzle of burner is equipped with a 305mm burner cone, opening height: 152mm, width: 280mm

    2. Fuel flow: 0 ~ 500ML/min

    3. Fuel guide: adjust the fuel guide rail to keep the fuel nozzle at the position of 8.0mm in the front of the distance.

    4. Internal fixation: located in the middle of the vent tube, the tip of the fuel nozzle is 95mm.

    5. Fan: diameter: 133mm, height: 89mm cylindrical.

    6. Fuel: kerosene and diesel.

    7. Heat flow meter: range: 0 ~ 22.7 W / ㎡, precision for indicator reading plus or minus 3 ﹪.

    8. Anemometer: blade type anemometer is used to calibrate and enter the burner. Air flow.

    9. Sample installation box: for a straight plate of 6.4mm thick, other steel for 3.2mm thick.

    10. On the back of the heat flow meter: 0 ~ 5.7 W / ㎡ precision for indicator reading plus or minus 3 ﹪.

    11. Smoke exhaust system: exclude the smoke line of combustion products during the test period
